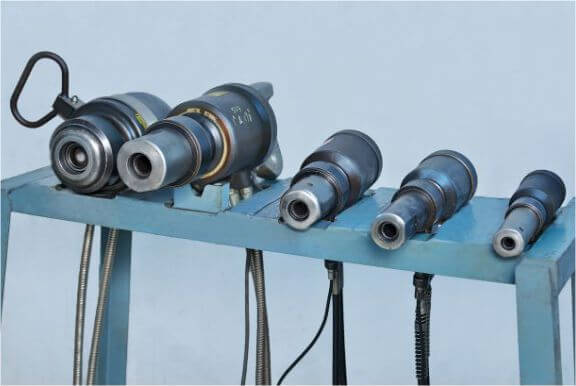

Installation Tools & Nose Assemblies
SIZE | LB16-IT | LB2024-IT | LB24-IT | LB28-IT | LB3236-IT | LB44-IT |
1/2 [16M] | LB16NA-1 |
|
|
|
|
|
5/8 " [20M] |
| LB20NA-1, LB24NA-1
|
|
|
|
|
3/4 " [24M] |
|
| LB24NA-1
|
|
|
|
7/8 " [28M] |
|
|
| LB28NA-1 |
|
|
1" [32M] |
|
|
|
| LB32NA-1 |
|
1-1/8" [36M] |
|
|
|
| LB36NA-1 |
|
1-3/8" [44M] |
|
|
|
|
| INTEGRAL |
Installation Tool Weight and Dimensions
MODEL | WEIGHT (Kg.) | LENGTH (mm) | HEIGHT (mm) | WIDTH (mm) |
LB16-IT | 8 | 167.64 | 177.8 | 71.628 |
LB2024-IT | 12 | 187.198 | 186.182 | 88.392 |
LB24-IT | 12 | 199.136 | 34.544 | 102.108 |
LB28-IT | 18 | 200.66 | 219.71 | 112.776 |
LB3236-IT | 19.68 | 393.7 | 152.4 | 137.16 |
LB44-IT | 27.21 | 298.704 | 166.624 | 166.624 |
Introduction
Installation tools are critical for the effective application and securing of fasteners in various applications, from construction and automotive to manufacturing and DIY projects. These tools are designed to enhance efficiency, accuracy, and safety during the fastening process. This detailed guide provides a complete overview of installation tools, including their types, features, benefits, and maintenance considerations.
1. Types of Installation Tools
1.1. Power Tools
- Impact Drivers: Used for driving screws and bolts with high torque, impact drivers are ideal for heavy-duty tasks. They combine rotational motion with concussive blows to drive fasteners quickly and efficiently.
- Drills: Versatile tools used for drilling holes and driving screws. Corded and cordless drills offer various speeds and torque settings to suit different materials and applications.
- Cordless Screwdrivers: Compact and convenient, cordless screwdrivers are perfect for light to medium-duty tasks. They provide ease of use and portability for tasks that require frequent adjustments.
1.2. Specialized Tools
- Torque Wrenches: Designed to apply a specific amount of torque to a fastener, torque wrenches ensure that bolts and nuts are tightened to precise specifications, preventing over-tightening or under-tightening.
- Rivet Guns: Used for installing rivets, rivet guns are essential for applications requiring a permanent and secure fastening solution. They come in manual, pneumatic, and electric versions.
- Fastener Inserters: These tools aid in the quick and accurate insertion of fasteners into pre-drilled holes, improving efficiency and consistency in the fastening process.
2. Features to Consider
- Material and Build Quality: High-quality installation tools are made from durable materials such as chrome vanadium steel or high-carbon steel. This ensures they withstand repeated use and resist wear and tear.
- Ergonomics: Comfortable handles and grips are crucial for reducing user fatigue and improving control. Ergonomic designs help users work more efficiently and with greater precision.
- Compatibility: Ensure tools are compatible with the types of fasteners and materials you work with. Some tools are designed specifically for certain fastener types, such as hex, star, or slotted fasteners.
3. Applications
- Construction: Installation tools are essential for various construction tasks, including assembling structures, securing components, and installing fixtures. They are used in framing, decking, drywall installation, and more.
- Automotive: In the automotive industry, installation tools are used for vehicle assembly, maintenance, and repairs. Precision and reliability are key to ensuring vehicle safety and performance.
- Manufacturing: Installation tools play a crucial role in manufacturing processes, from assembly lines to quality control. They help in the secure fastening of components and ensure consistency and accuracy in production.
4. Benefits
- Efficiency: Using the right installation tools speeds up the fastening process, saving time and increasing overall productivity.
- Accuracy: Specialized tools ensure that fasteners are installed correctly, reducing the risk of errors and improving the reliability of the assembled product.
- Safety: Properly designed tools minimize the risk of injuries associated with manual fastening methods and provide a safer working environment.
5. Maintenance and Care
- Regular Cleaning: Keep tools clean from debris, dust, and residue to ensure optimal performance. Regular cleaning prevents buildup that can affect tool function.
- Lubrication: Periodically lubricate moving parts to reduce friction and prevent wear. This helps maintain smooth operation and extends tool lifespan.
- Inspection: Regularly inspect tools for signs of damage or wear, such as cracks or broken parts. Replace any damaged tools to maintain safety and effectiveness.
- Storage: Store tools in a dry, clean environment to prevent rust and corrosion. Use toolboxes or designated storage solutions to keep them organized and accessible.
Conclusion
Installation tools for fasteners are indispensable for a wide range of applications, offering efficiency, precision, and safety. By understanding the different types of tools, their features, and their specific applications, you can select the right tools for your needs and ensure optimal performance in your fastening tasks. Proper maintenance and care of these tools will help extend their lifespan and keep them in top working condition.
