| Part No. | Dia. | F (mm) | G (mm) | H (mm) | J (mm) | K (mm) |
| LCFS-16G | 1/2" |
12.95 - 13.59 |
20.14 - 20.50 |
18.44 - 19.20 |
2.39 - 3.96 |
24.61 - 26.19 |
LCFS-20G
| 5/8" |
16.51 - 16.89 |
24.89 - 25.30 |
23.60 - 24.36 |
3.18 - 4.75 |
30.94 - 32.54 |
LCFS-24G
| 3/4" |
19.71 - 20.07 |
29.72 - 30.35 |
28.17 - 29.34 |
3.96 - 5.54 |
37.59 - 38.74 |
LCFS-28G
| 7/8" |
22.76 - 23.37 |
34.54 - 34.80 |
32.84 - 34.01 |
4.75 - 6.35 |
39.88 - 41.02 |
LCFS-32G
| 1" |
26.16 - 26.67 |
39.37 - 39.75 |
37.72 - 38.48 |
5.54 - 7.14 |
46.81 - 48.41 |
LCFS-36G
| 1-1/8" |
29.46 - 29.85 |
44.45 - 44.70 |
42.55 - 43.56 |
6.93 - 7.34 |
53.47 - 54.48 |

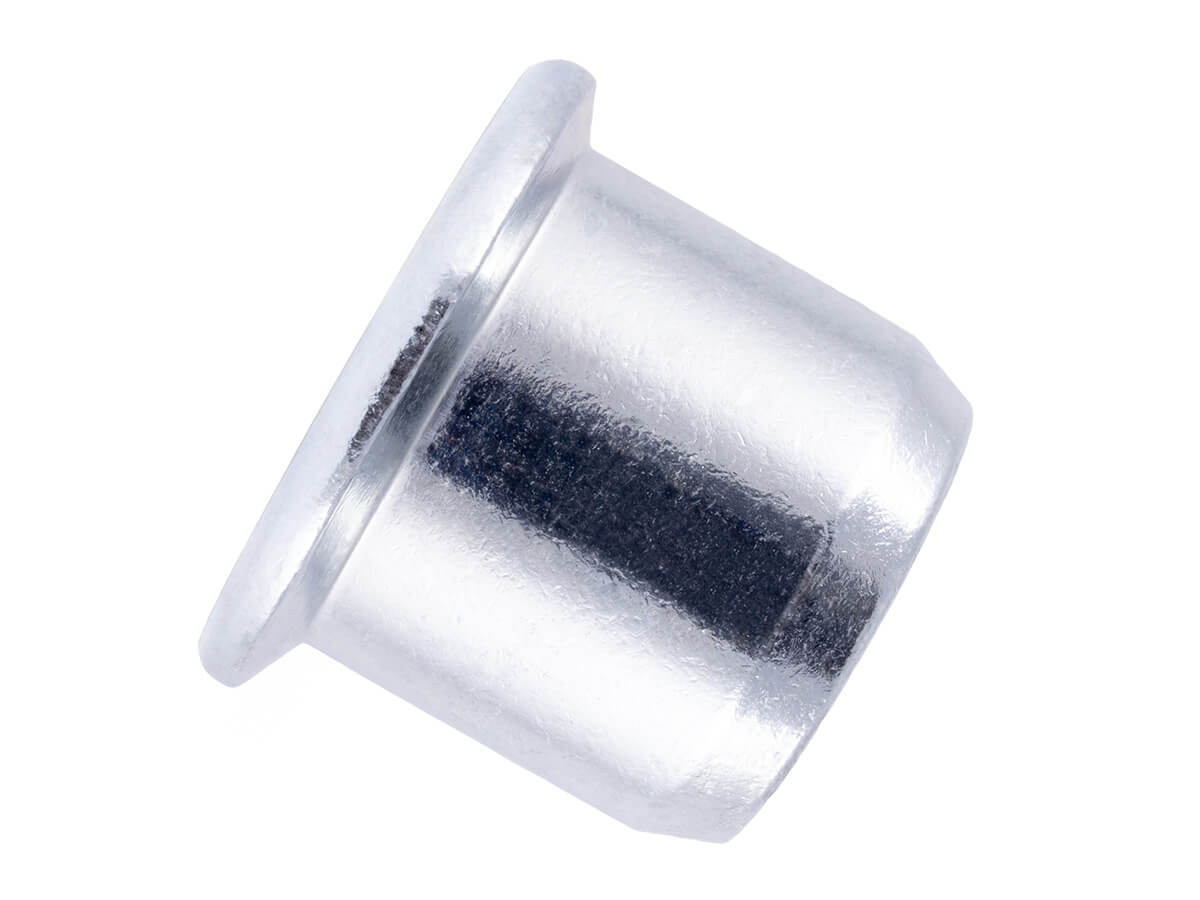

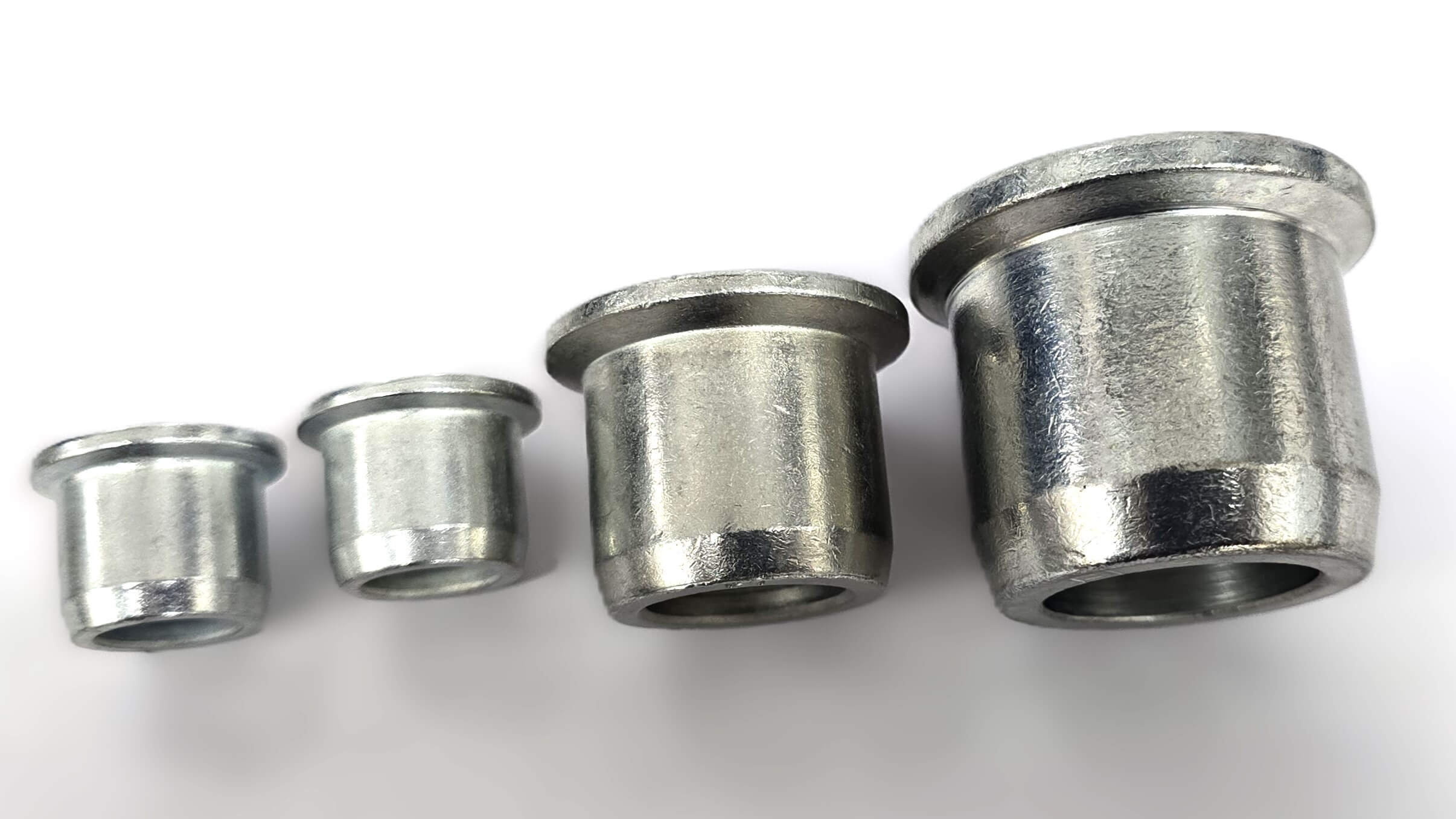

Lock bolt Collars - Flanged are designed to provide superior performance and stability in high-demand fastening applications. Featuring a unique flange design, these collars distribute load more evenly and offer enhanced resistance to shear and tensile forces. The flange increases the bearing surface area, which helps in reducing stress concentrations and ensures a more secure and reliable joint.
Manufactured from high-strength, corrosion-resistant materials, Lock bolt Collars - Flange Type are ideal for use in environments exposed to harsh conditions, including extreme temperatures, moisture, and chemicals. Their robust construction ensures that they can withstand rigorous operational demands while maintaining long-lasting durability.
The flange design not only improves the load distribution but also simplifies the installation process. These collars are compatible with standard tools, allowing for quick and efficient assembly. The precise engineering of the Flange Type collars guarantees a perfect fit with lock bolts, enhancing the overall integrity and performance of the fastening system.
At Pankaj International, we offer Lock bolt Collars - Flanged as part of our extensive range of fastening solutions. Whether you need standard collars or other types, our products are designed to deliver exceptional quality and reliability for all your fastening needs.
