Metric Thread Chart

THREAD CHART (METRIC THREADS)

THREAD DATA CHART: Metric Thread — Fine Pitch

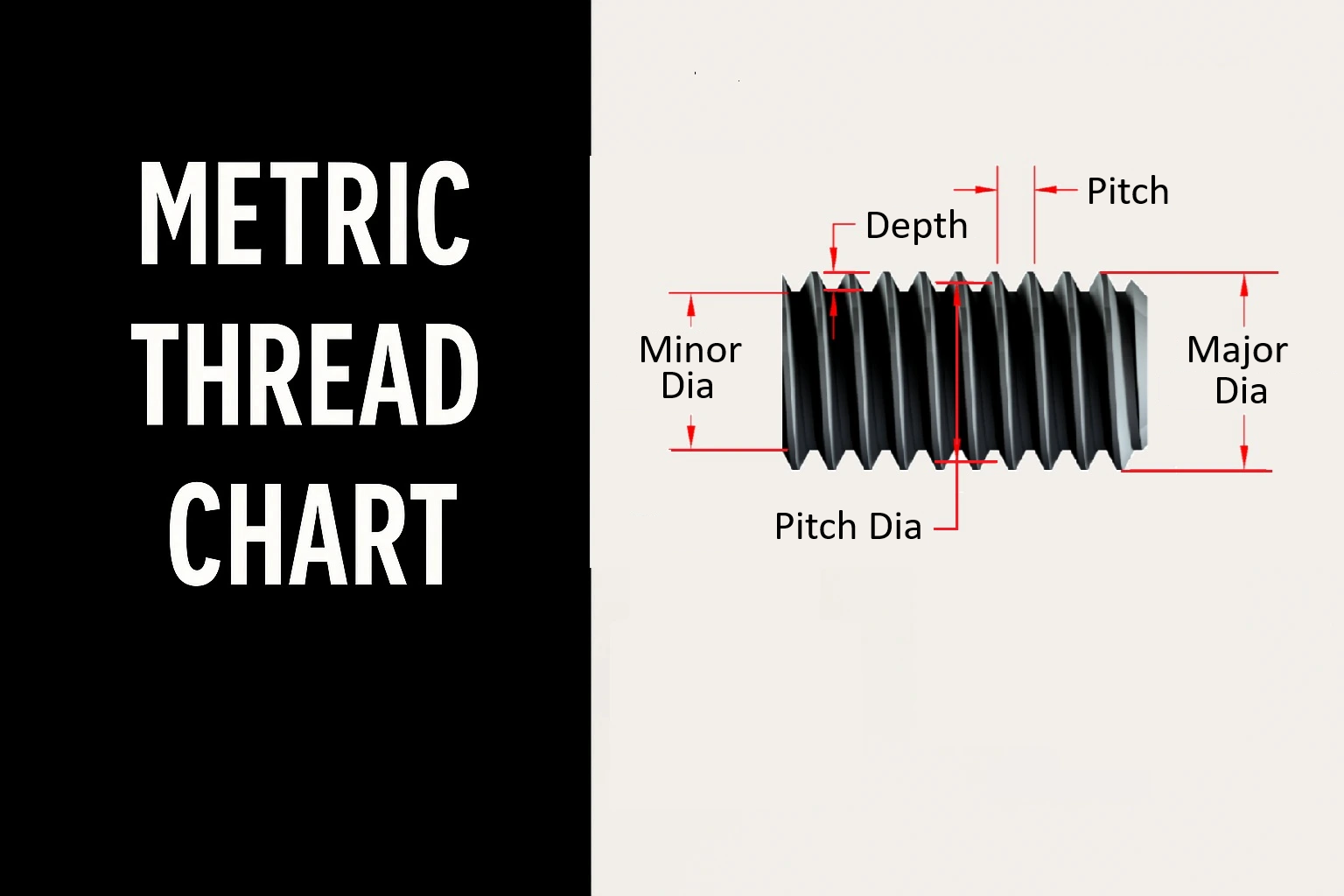

Nominal Size ISO MF Thread Form Type Major Diameter mm
d = D Pitch mm
p Root Radius mm
r Pitch Diameter mm
d2 = D2 Minor Diameter Male Thd.
d3 Minor Diameter Female Thd.
D1 Thread Height Male Thd.
h3 Thread Height Female Thd.
H1 Tap Drill Diameter mm

1.0x0.20 M 1.00 0.20 0.029 0.870 0.755 0.783 0.123 0.108 0.80

1.1x0.20 M 1.10 0.20 0.029 0.970 0.855 0.883 0.123 0.108 0.90

1.2x0.20 M 1.20 0.20 0.029 1.070 0.955 0.983 0.123 0.108 1.00

1.4x0.20 M 1.40 0.20 0.029 1.270 1.155 1.183 0.123 0.108 1.20

1.6x0.20 M 1.60 0.20 0.029 1.470 1.355 1.383 0.123 0.108 1.40

1.8x0.20 M 1.80 0.20 0.029 1.670 1.555 1.583 0.123 0.108 1.60

2.0x0.25 M 2.00 0.25 0.036 1.838 1.693 1.729 0.153 0.135 1.75

2.2x0.25 M 2.20 0.25 0.036 2.038 1.893 1.929 0.153 0.135 1.95

2.5x0.35 M 2.50 0.35 0.051 2.273 2.071 2.121 0.215 0.189 2.10

3.0x0.35 M 3.00 0.35 0.051 2.773 2.571 2.621 0.215 0.189 2.60

3.5x0.35 M 3.50 0.35 0.051 3.273 3.071 3.121 0.215 0.189 3.10

4.0x0.50 M 4.00 0.50 0.072 3.545 3.247 3.297 0.306 0.270 3.50

4.5x0.50 M 4.50 0.50 0.072 4.045 3.747 3.797 0.306 0.270 4.00

5.0x0.50 M 5.00 0.50 0.072 4.545 4.247 4.297 0.306 0.270 4.50

5.0x0.75 M 5.00 0.75 0.108 4.376 3.950 4.020 0.463 0.409 4.20

6.0x0.75 M 6.00 0.75 0.108 5.376 4.950 5.020 0.463 0.409 5.20

6.0x1.00 M 6.00 1.00 0.144 5.350 4.773 4.854 0.618 0.545 5.00

7.0x1.00 M 7.00 1.00 0.144 6.350 5.773 5.854 0.618 0.545 6.00

8.0x1.00 M 8.00 1.00 0.144 7.350 6.773 6.854 0.618 0.545 7.00

8.0x1.25 M 8.00 1.25 0.180 7.188 6.542 6.634 0.773 0.681 6.80

9.0x1.25 M 9.00 1.25 0.180 8.188 7.542 7.634 0.773 0.681 7.80

10.0x1.25 M 10.00 1.25 0.180 9.188 8.542 8.634 0.773 0.681 8.80

10.0x1.50 M 10.00 1.50 0.216 9.026 8.311 8.413 0.928 0.817 8.50

11.0x1.50 M 11.00 1.50 0.216 10.026 9.311 9.413 0.928 0.817 9.50

12.0x1.50 M 12.00 1.50 0.216 11.026 10.311 10.413 0.928 0.817 10.50
