| Dia | c | d | f | i |
| 5/8 " | 7-1/2 | 1/2 | 6 | 9/16 |
5/8 "
| 10 | 1/2
| 6 | 9/16
|
5/8 "
| 7 | 1/2
| 4 | 9/16
|
5/8 "
| 10 | 1/2
| 6 | 9/16
|
5/8 "
| 12 | 1/2
| 6 | 9/16
|
| 5/8 " | 14 | 1/2
| 8 | 9/16
|
| 3/4 " | 7-1/2 | 5/8 | 4 | 11/16 |
| 3/4 " | 10 | 5/8 | 6 | 11/16 |

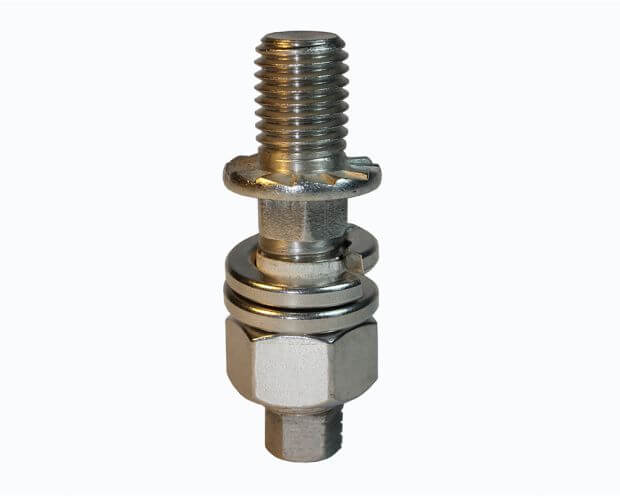

Insulator Stud: Essential Characteristics and Uses
Insulator studs are critical components designed to support and secure insulators in electrical systems. These studs are engineered to provide stable mounting and ensure electrical insulation between conductive parts and the mounting surface. At Pankaj International, we produce high-quality insulator studs that adhere to rigorous industry standards, delivering reliability and performance for various electrical and industrial applications.
Design and Functionality
Insulator studs feature a robust design with a threaded shaft that allows for secure attachment to electrical insulators. Their construction includes a non-conductive material or coating that provides essential insulation between the conductive parts of the system and the mounting surface. This design helps prevent electrical shorts and ensures that the electrical system operates safely and efficiently. The stud's threaded design allows for easy installation and adjustment, making it a versatile component for various electrical configurations and applications.
Material Quality and Durability
To ensure optimal performance and longevity, insulator studs are manufactured from high-quality materials such as stainless steel or corrosion-resistant alloys. These materials provide the necessary strength and durability to withstand environmental stresses and mechanical loads. Additionally, insulator studs are often coated with insulating materials or finishes to enhance their electrical resistance and protect against wear and corrosion. This makes them suitable for both indoor and outdoor applications, where exposure to harsh environmental conditions is a concern.
Conclusion
Insulator studs play a crucial role in ensuring the safety and efficiency of electrical systems by providing secure mounting and insulation for electrical components. Their robust design and high-quality materials ensure reliable performance and durability under various conditions. At Pankaj International, we are committed to producing insulator studs that meet the highest standards of quality and functionality. For dependable solutions in electrical mounting and insulation, contact us today to explore our range of fasteners and find the ideal solution for your specific needs
